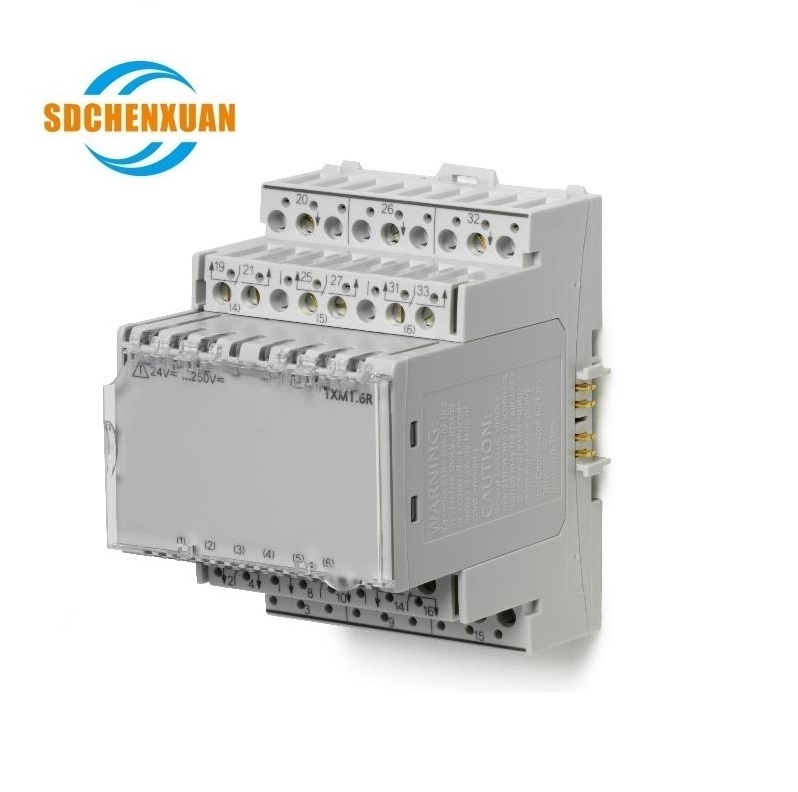

4 DI, individually configurable as:
- Message signal
- Message impulse with storage functions
- Counter impulse for up to a maximum of 10 Hertz
3 outputs signaled with green LED, without local operation.
3 DO (relay switch), individually configurable as:
- Continuous or impulse contact
- Single-stage (Note: no multi-stage steps / pulse as supported by TXM1.6R)
- Three-point positioning output with internal stroke model
- Switching voltage AC 12...250 V / DC 12…30 V
- Switching current max. 4 A
Hardware bolting is by means of external wiring the two-way contacts.
For use with the PXC4.E16 and PXC4.M16 automation stations
