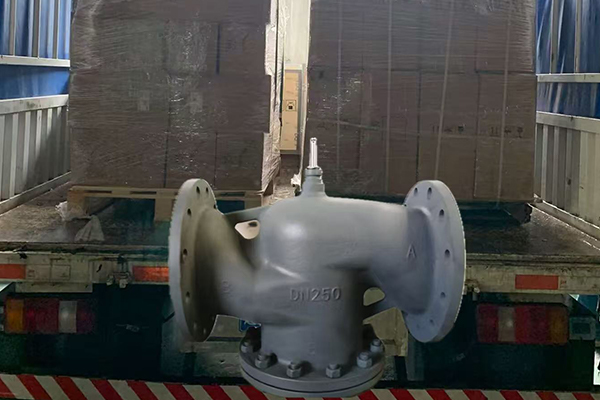

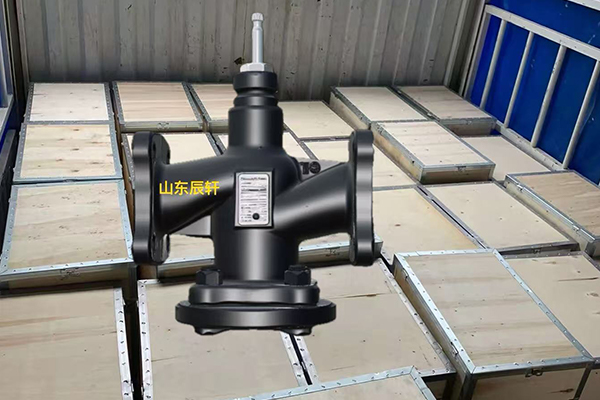

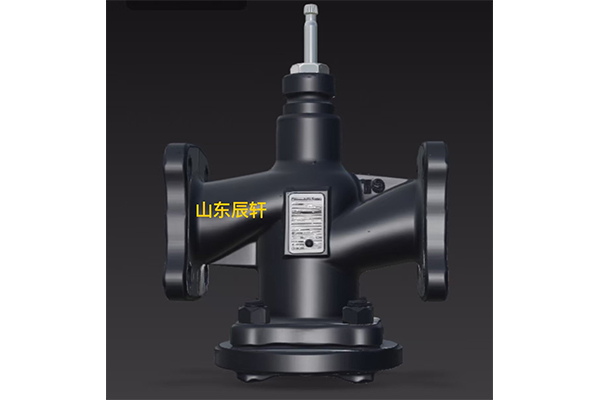

A Siemens control valve is a critical component in building automation and industrial process control systems. It acts as the final control element, precisely regulating the flow of water, steam, or other fluids through a pipe to control temperature, pressure, or flow rate within a system.
Core Function
The primary function of a Siemens control valve is to **modulate flow** based on an electronic signal from a controller (like a thermostat or a Building Management System - BMS).
Here’s a breakdown of how it works:
1. Signal Reception: The valve receives a command signal (typically a 0-10V DC or 2-10V DC analog signal) from a controller.
2. Actuation: An integrated electric actuator (motor) interprets this signal.
3. Positioning: The actuator precisely moves the valve stem to a specific position, which opens or closes the valve plug by a calculated amount.
4. Flow Regulation: This change in the valve's opening directly modulates the flow rate of the medium (e.g., hot or chilled water) passing through it.
5. Feedback: Many Siemens valves include a potentiometer or other feedback mechanism to report the actual valve position back to the controller, ensuring accuracy and allowing for closed-loop control.
Key Features and Capabilities
Precise Modulation: Unlike simple on/off valves, they can open to any position between fully open and fully closed, allowing for fine-tuned control.
Energy Efficiency: By providing exactly the amount of heating or cooling required, they prevent energy waste, leading to significant cost savings and reduced carbon footprint.
Integration: They are designed to seamlessly integrate with other Siemens building automation products, such as Siemens Desigo™ or PXM controllers, creating a unified and intelligent system.
Reliability and Durability: Built with high-quality materials for long service life, even in demanding applications.
Various Sizes and Types: Available in 2-way and 3-way configurations for different piping arrangements, and in a wide range of sizes to match pipe diameters.
Primary Applications
Siemens control valves are ubiquitous in systems that require precise environmental or process control:
1. HVAC (Heating, Ventilation, and Air Conditioning) Systems
Heating Coils: Regulating the flow of hot water or steam through a heater coil to maintain a desired air temperature.
Cooling Coils: Modulating the flow of chilled water through a cooling coil to control space temperature or humidity.
Radiant Floor Heating: Controlling the water temperature in underfloor heating loops for zoned comfort.
Air Handling Units (AHUs): Managing heating and cooling stages to condition supply air.
2. Industrial Process Control
Manufacturing: Precisely controlling the temperature of fluids in chemical processes, plating tanks, or food and beverage production.
Power Plants: Regulating coolant flow, feedwater, or steam.
3. District Energy Systems
Controlling the exchange of heating or cooling from a central plant (district energy) to individual buildings.
