Digital Thermostat is designed for 3-speed fan and valve control in a fan coil system, including 2/4-pipe cool/heat/manual changeover, 4-pipe cool/heat manual /automatic changeover, Ventilation mode, Manual or automatic 3-speed fan control, Water valve control. Thermostat measures the room temperature via integrated sensor or remote temperature sensor and maintains the set point by delivering on/off valve control command outputs. Besides the basic controls, thermostat features CPH (Cycle Per Hour) better maintains the room temperature to the set point and Random Start-up Function would help to maintain power grid stability. In addition, Memorized Time Off Function can automatically turn off the thermostat to save energy.
● Features & Benefits:Energy saving mode optional
● LCD display with simple user interface
● Room temperature or set point temperature display selectable
● Manual or automatic fan speed selectable
● Temperature units in either °C or °F
● User setting can be stored with power loss
● Freeze protection available
● Four keypad lock options
● Heating and cooling set point limitation
Product Details:
| Product | Description |
|---|---|
| Brand | SDCHENXUAN |

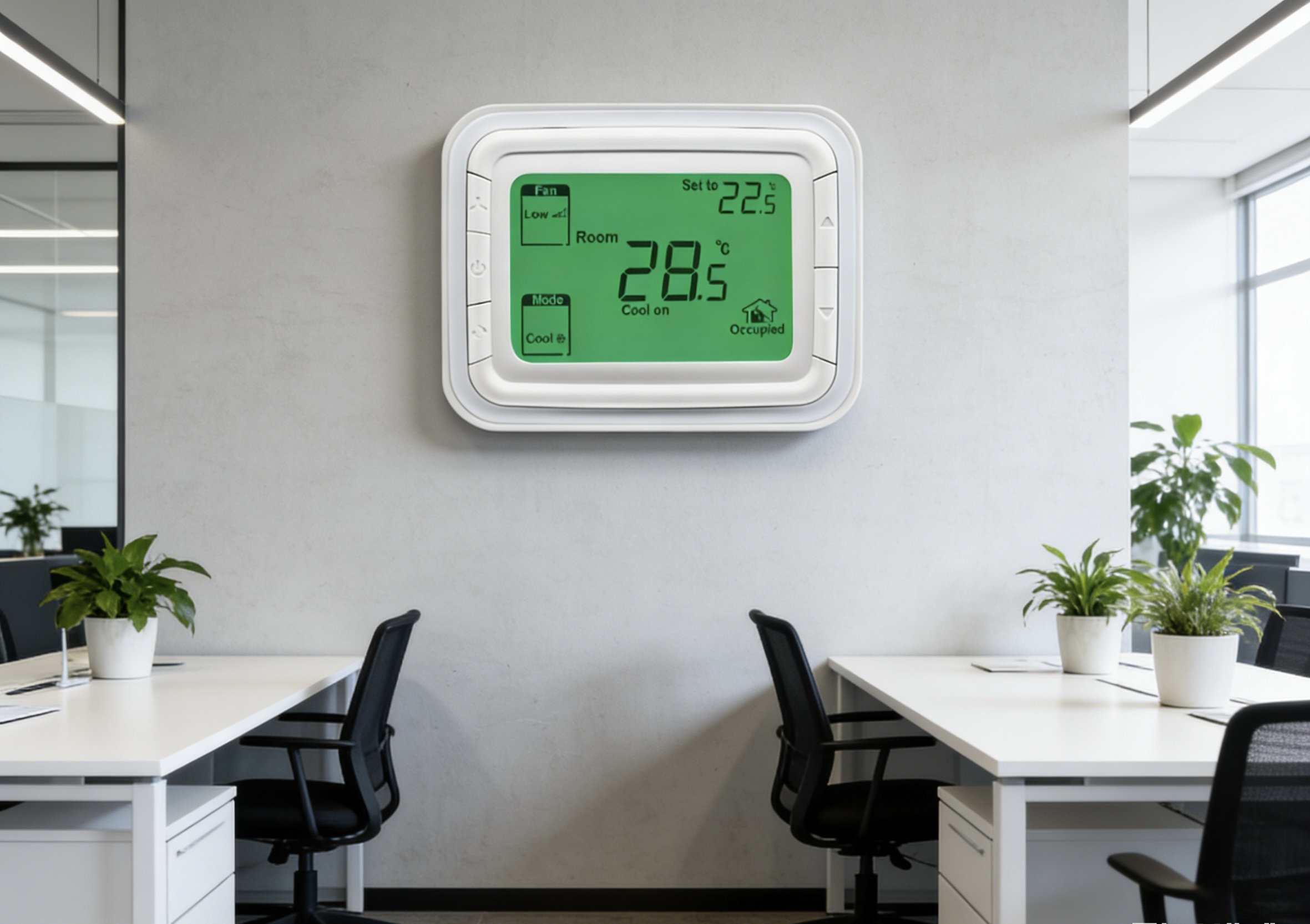

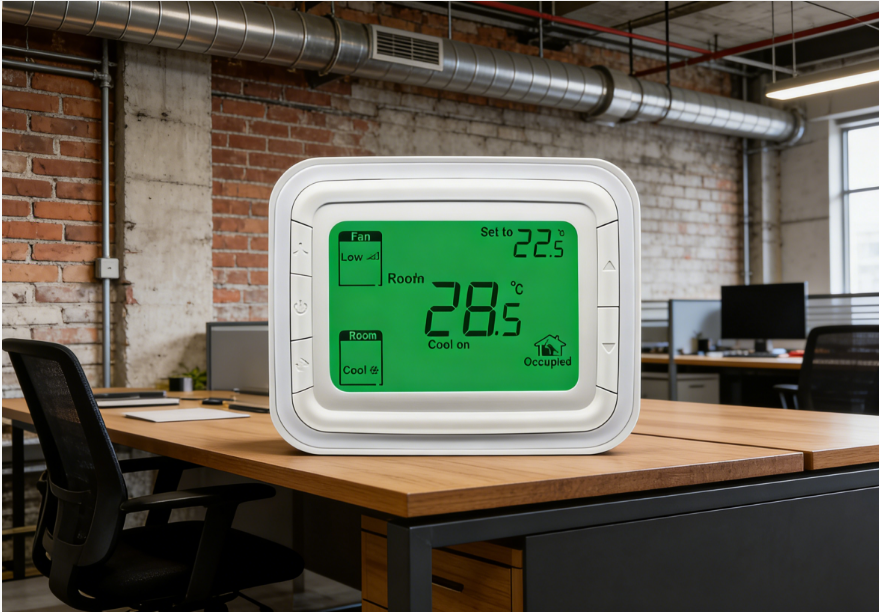

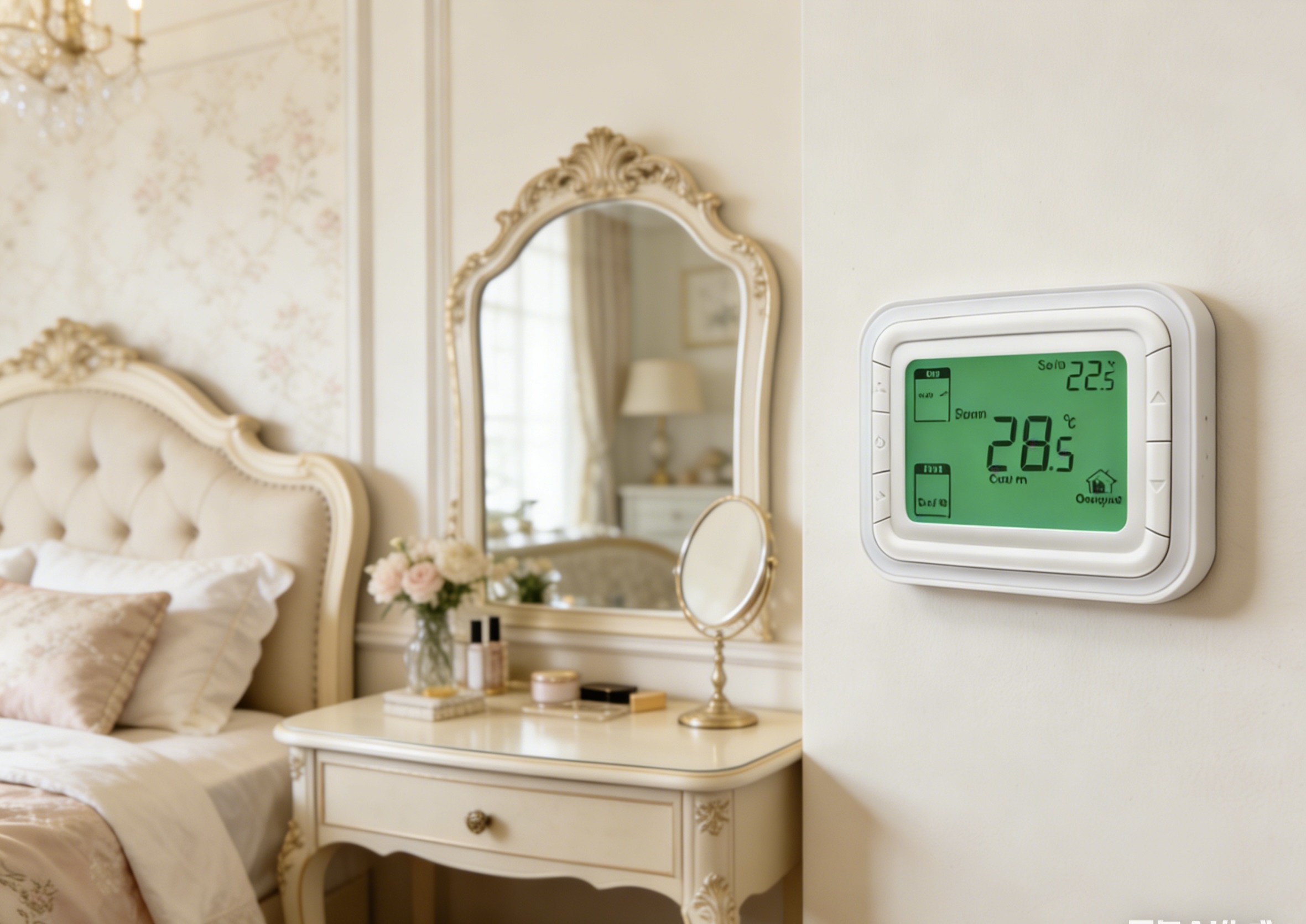

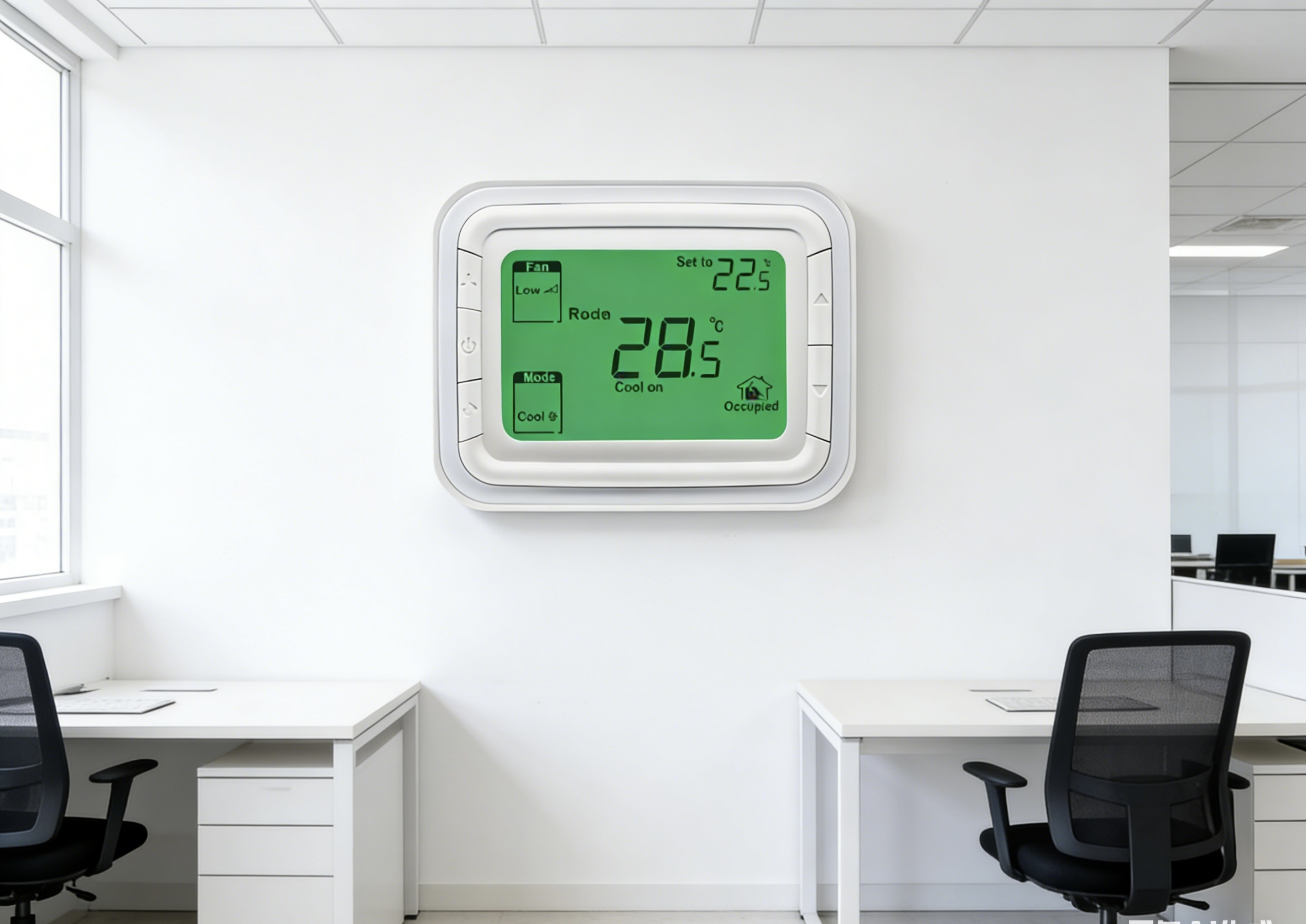

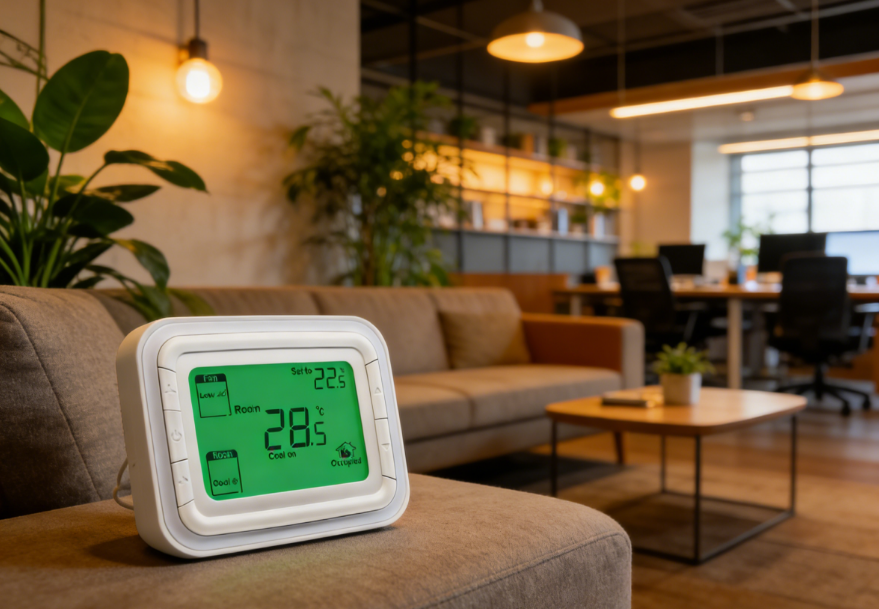

| Model Number | T6861HG |
| Type | Horizontal Digital Thermostat |
| Backlight | Green |
| Color Ring | White/Blue |
| 2-pipe/4-pipe | 2/4 |
| Power supply | 220V |
| Accuracy | +/-1oC at 21oC |
| Installation | Installed on 86×86mm junction box or US2×4 inch |
| Operation temperature | -18~49oC |
| Cycle times | 100,000 times |
| Setpoint range | 10~32oC |
| Display range | 0~37oC |
| Protection Class | IP20 |
Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below
