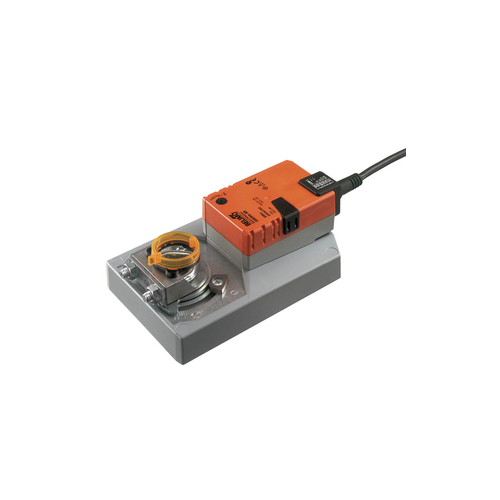

GM24A-SR Rotary actuator, 40 Nm, AC/DC 24 V, 2...10 V, 150 s, IP54

Product Description

Voltage AC/DC                                          AC/DC 24 V

Power consumption (running)                     4.5 W

Power consumption (holding)                      2 W

Power Consumption For Wire Sizing            6.5 VA

Connection Supply Control            Cable 1 m, 4x 0.75 mm²

Torque                                    40 Nm

Control type                              DC 2...10 V

Direction Of Motion Motor       selectable with switch 0/1

Manual override                  With push-button, can be locked

Angle of rotation                 95

Running time (motor)          150 s / 90°

Mechanical interface           Universal shaft clamp reversible 12...26.7 mm

Protection category                     IP54

Degree Of Protection NEMA         NEMA 2

Enclosure Type                        UL Enclosure Type 2

Ambient Temperature              -30...50°C [-22...122°F]
