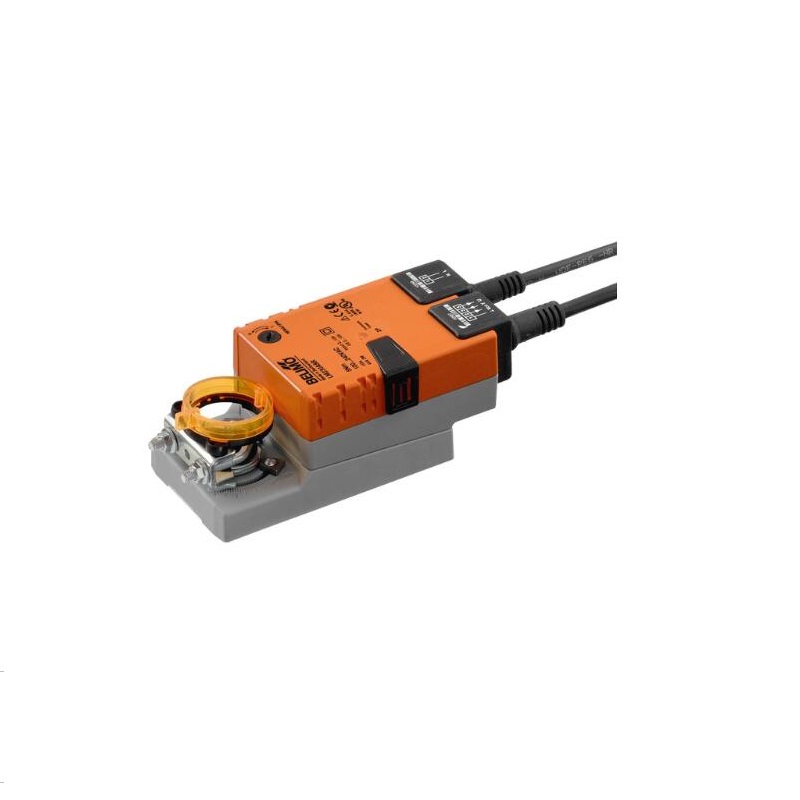

Rotary actuator, 5 Nm, AC 100...240 V, Open/close, 3-point, 150 s, Form fit 8x8 mm, IP54
Voltage AC/DC AC 100...240 V
Power consumption (running) 1.5 W
Power consumption (holding) 0.5 W
Power Consumption For Wire Sizing 3.5 VA
Connection Supply Control Cable 1 m, 3x 0.75 mm²
Torque 5 Nm
Control type Open/close
3-point
Direction Of Motion Motor selectable with switch 0 (ccw rotation) / 1 (cw rotation)
Manual override With push-button, can be locked
Angle of rotation 95
Running time (motor) 150 s / 90°
Mechanical interface Form fit 8x8 mm
Protection category IP54
Degree Of Protection NEMA NEMA 2
Enclosure Type UL Enclosure Type 2
Ambient Temperature -30...50°C [-22...122°F]
